ASysShaderHAL Class Reference

#include <ASysShader_DX8.h>

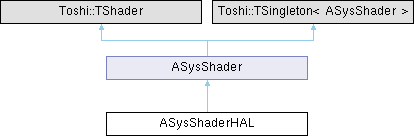

Inheritance diagram for ASysShaderHAL:
ASysShader

Public Member Functions

 TDECLARE_CLASS (ASysShaderHAL, ASysShader)

virtual void Flush () override

virtual void StartFlush () override

virtual void EndFlush () override

virtual TBOOL Create () override

virtual TBOOL Validate () override

virtual void Invalidate () override

virtual TBOOL TryInvalidate () override

virtual TBOOL TryValidate () override

virtual void Render (Toshi::TRenderPacket *pPacket) override

virtual ASysMaterial * CreateMaterial (const TCHAR *a_szName) override

virtual ASysMesh * CreateMesh (const TCHAR *a_szName) override

Toshi::TOrderTable * GetOrderTable (TUINT a_uiIndex)

- Public Member Functions inherited from ASysShader
 TDECLARE_CLASS (ASysShader, Toshi::TShader)

virtual TBOOL IsLightScattering ()

virtual void SetLightScattering (TBOOL a_bEnabled)


Static Public Attributes

static constexpr TUINT NUM_ORDER_TABLES = 4

static TBOOL ms_bRenderEnabled = true


Detailed Description

Definition at line 6 of file ASysShader_DX8.h.

Member Function Documentation

◆ Create()

TBOOL ASysShaderHAL::Create ( )
overridevirtual

Definition at line 115 of file ASysShader_DX8.cpp.

116{
117 TASSERT( TFALSE == IsCreated() );
118
119 m_aOrderTables[ 0 ].Create( this, -1000 );
120 m_aOrderTables[ 1 ].Create( this, 2000 );
121 m_aOrderTables[ 2 ].Create( this, -6000 );
122 m_aOrderTables[ 3 ].Create( this, -5990 );
123
124 ASysShader::Create();
125 return Validate();
126}
TASSERT
#define TASSERT(X,...)
Definition Defines.h:138
TFALSE
#define TFALSE
Definition Typedefs.h:24
ASysShaderHAL::Validate
virtual TBOOL Validate() override
Definition ASysShader_DX8.cpp:128

◆ CreateMaterial()

ASysMaterial * ASysShaderHAL::CreateMaterial ( const TCHAR * a_szName)
overridevirtual

Implements ASysShader.

Definition at line 207 of file ASysShader_DX8.cpp.

208{
209 Validate();
210
211 auto pMaterialHAL = new ASysMaterialHAL();
212 pMaterialHAL->SetShader( this );
213 pMaterialHAL->SetOrderTable( &m_aOrderTables[ 0 ] );
214
215 return pMaterialHAL;
216}

◆ CreateMesh()

ASysMesh * ASysShaderHAL::CreateMesh ( const TCHAR * a_szName)
overridevirtual

Implements ASysShader.

Definition at line 218 of file ASysShader_DX8.cpp.

219{
220 Validate();
221
222 auto pMeshHAL = new ASysMeshHAL();
223 pMeshHAL->SetOwnerShader( this );
224
225 return pMeshHAL;
226}

◆ EndFlush()

void ASysShaderHAL::EndFlush ( )
overridevirtual

Definition at line 106 of file ASysShader_DX8.cpp.

107{
108 auto pDevice = TRenderD3DInterface::Interface()->GetDirect3DDevice();
109
110 pDevice->SetRenderState( D3DRS_ALPHATESTENABLE, FALSE );
111 pDevice->SetRenderState( D3DRS_ALPHABLENDENABLE, FALSE );
112 pDevice->SetRenderState( D3DRS_FOGENABLE, FALSE );
113}
TRenderD3DInterface::GetDirect3DDevice
TFORCEINLINE IDirect3DDevice8 * GetDirect3DDevice() const
Gets the Direct3D device.
Definition TRenderInterface_DX8.h:391
TRenderD3DInterface::Interface
static TFORCEINLINE TRenderD3DInterface * Interface()
Gets the render interface singleton.
Definition TRenderInterface_DX8.h:453

◆ Flush()

void ASysShaderHAL::Flush ( )
overridevirtual

Definition at line 23 of file ASysShader_DX8.cpp.

24{
25 Validate();
26
27 auto pDevice = TRenderD3DInterface::Interface()->GetDirect3DDevice();
28 auto pRenderContext = TSTATICCAST(
29 TRenderContextD3D,
30 TRenderD3DInterface::Interface()->GetCurrentContext()
31 );
32
33 pDevice->SetTextureStageState( 0, D3DTSS_MINFILTER, 2 );
34 pDevice->SetTextureStageState( 0, D3DTSS_MAGFILTER, 2 );
35 pDevice->SetTextureStageState( 0, D3DTSS_MIPFILTER, 1 );
36 pDevice->SetTextureStageState( 0, D3DTSS_COLOROP, 4 );
37 pDevice->SetTextureStageState( 0, D3DTSS_COLORARG1, 2 );
38 pDevice->SetTextureStageState( 0, D3DTSS_COLORARG2, 1 );
39 pDevice->SetTextureStageState( 0, D3DTSS_ALPHAOP, 4 );
40 pDevice->SetTextureStageState( 0, D3DTSS_ALPHAARG1, 2 );
41 pDevice->SetTextureStageState( 0, D3DTSS_ALPHAARG2, 1 );
42 pDevice->SetTextureStageState( 1, D3DTSS_COLOROP, 1 );
43 pDevice->SetTextureStageState( 1, D3DTSS_ALPHAOP, 1 );
44 pDevice->SetVertexShader( D3DFVF_TEX1 | D3DFVF_DIFFUSE | D3DFVF_XYZ );
45
46 static TMatrix44 s_Identity = TMatrix44::IDENTITY;
47
48 pDevice->SetTransform( D3DTS_PROJECTION, pRenderContext->GetProjectionMatrix() );
49 pDevice->SetTransform( D3DTS_VIEW, s_Identity );
50 pDevice->SetPixelShader( 0 );
51
52 pDevice->SetRenderState( D3DRS_ALPHATESTENABLE, FALSE );
53 pDevice->SetRenderState( D3DRS_ALPHABLENDENABLE, TRUE );
54 pDevice->SetRenderState( D3DRS_ALPHATESTENABLE, TRUE );
55 pDevice->SetRenderState( D3DRS_ALPHAREF, 1 );
56 pDevice->SetRenderState( D3DRS_ALPHAFUNC, 5 );
57 pDevice->SetRenderState( D3DRS_SPECULARENABLE, FALSE );
58 pDevice->SetRenderState( D3DRS_LIGHTING, 0 );
59 pDevice->SetRenderState( D3DRS_FOGENABLE, FALSE );
60
61 m_aOrderTables[ 0 ].Render();
62 pDevice->SetRenderState( D3DRS_ALPHATESTENABLE, FALSE );
63 pDevice->SetRenderState( D3DRS_ALPHABLENDENABLE, FALSE );
64 pDevice->SetRenderState( D3DRS_FOGENABLE, FALSE );
65}
TSTATICCAST
#define TSTATICCAST(POINTERTYPE, VALUE)
Definition Defines.h:69
TMatrix44::IDENTITY
static constinit TMatrix44 IDENTITY
Definition TMatrix44.h:357

◆ GetOrderTable()

Toshi::TOrderTable * ASysShaderHAL::GetOrderTable ( TUINT a_uiIndex)
inline

Definition at line 26 of file ASysShader_DX8.h.

27 {
28 TASSERT( a_uiIndex < NUM_ORDER_TABLES );
29 return &m_aOrderTables[ a_uiIndex ];
30 }
ASysShaderHAL::NUM_ORDER_TABLES
static constexpr TUINT NUM_ORDER_TABLES
Definition ASysShader_DX8.h:11

◆ Invalidate()

void ASysShaderHAL::Invalidate ( )
overridevirtual

Definition at line 138 of file ASysShader_DX8.cpp.

139{
140 if ( IsValidated() )
141 {
142 return ASysShader::Invalidate();
143 }
144}

◆ Render()

void ASysShaderHAL::Render ( Toshi::TRenderPacket * pPacket)
overridevirtual

Definition at line 158 of file ASysShader_DX8.cpp.

159{
160 TASSERT( pPacket->GetMesh()->IsExactly( &TGetClass( ASysMeshHAL ) ) );
161
162 auto pDevice = TRenderD3DInterface::Interface()->GetDirect3DDevice();
163 ASysMeshHAL* pMeshHAL = TSTATICCAST( ASysMeshHAL, pPacket->GetMesh() );
164
165 pDevice->SetTransform( D3DTS_WORLDMATRIX( 0 ), (D3DMATRIX*)&pPacket->GetModelViewMatrix() );
166 pDevice->SetRenderState( D3DRS_ZBIAS, pMeshHAL->GetZBias() );
167
168 auto pVertexPool = TDYNAMICCAST( TVertexPoolResource, pMeshHAL->GetVertexPool() );
169 auto pIndexPool = TDYNAMICCAST( TIndexPoolResource, pMeshHAL->GetIndexPool() );
170
171 TVertexBlockResource::HALBuffer vertexHALBuffer;
172 pVertexPool->GetHALBuffer( &vertexHALBuffer );
173
174 TIndexBlockResource::HALBuffer indexHALBuffer;
175 pIndexPool->GetHALBuffer( &indexHALBuffer );
176
177 pDevice->SetStreamSource( 0, vertexHALBuffer.apVertexBuffers[ 0 ], 24 );
178 pDevice->SetIndices( indexHALBuffer.pIndexBuffer, vertexHALBuffer.uiVertexOffset );
179
180 if ( ms_bRenderEnabled )
181 {
182 if ( pIndexPool->GetFlags() & 8 )
183 {
184 pDevice->DrawIndexedPrimitive(
185 D3DPT_TRIANGLESTRIP,
186 0,
187 pVertexPool->GetNumVertices(),
188 indexHALBuffer.uiIndexOffset,
189 pIndexPool->GetNumIndices() - 2
190 );
191 }
192 else
193 {
194 pDevice->DrawIndexedPrimitive(
195 D3DPT_TRIANGLELIST,
196 0,
197 pVertexPool->GetNumVertices(),
198 indexHALBuffer.uiIndexOffset,
199 pIndexPool->GetNumIndices() / 3
200 );
201 }
202 }
203
204 pDevice->SetRenderState( D3DRS_ZBIAS, 0 );
205}
TGetClass
#define TGetClass(CLASS)
Definition TObject.h:13
TDYNAMICCAST
#define TDYNAMICCAST(T, OBJECT)
Definition TObject.h:227
TVertexBlockResource::HALBuffer::apVertexBuffers
IDirect3DVertexBuffer8 * apVertexBuffers[TVertexFactoryFormat::MAX_NUM_STREAMS]
Definition TVertexBlockResource_DX8.h:32
ASysMeshHAL::GetZBias
TINT GetZBias() const
Definition ASysMesh_DX8.h:15
ASysShaderHAL::ms_bRenderEnabled
static TBOOL ms_bRenderEnabled
Definition ASysShader_DX8.h:33
ASysMesh::GetIndexPool
virtual Toshi::TIndexPoolResourceInterface * GetIndexPool()
Definition ASysMesh.cpp:198
ASysMesh::GetVertexPool
virtual Toshi::TVertexPoolResourceInterface * GetVertexPool()
Definition ASysMesh.cpp:193

◆ StartFlush()

void ASysShaderHAL::StartFlush ( )
overridevirtual

Definition at line 67 of file ASysShader_DX8.cpp.

68{
69 Validate();
70
71 auto pDevice = TRenderD3DInterface::Interface()->GetDirect3DDevice();
72 auto pRenderContext = TSTATICCAST(
73 TRenderContextD3D,
74 TRenderD3DInterface::Interface()->GetCurrentContext()
75 );
76
77 pDevice->SetTextureStageState( 0, D3DTSS_MINFILTER, 2 );
78 pDevice->SetTextureStageState( 0, D3DTSS_MAGFILTER, 2 );
79 pDevice->SetTextureStageState( 0, D3DTSS_MIPFILTER, 1 );
80 pDevice->SetTextureStageState( 0, D3DTSS_COLOROP, 4 );
81 pDevice->SetTextureStageState( 0, D3DTSS_COLORARG1, 2 );
82 pDevice->SetTextureStageState( 0, D3DTSS_COLORARG2, 1 );
83 pDevice->SetTextureStageState( 0, D3DTSS_ALPHAOP, 4 );
84 pDevice->SetTextureStageState( 0, D3DTSS_ALPHAARG1, 2 );
85 pDevice->SetTextureStageState( 0, D3DTSS_ALPHAARG2, 1 );
86 pDevice->SetTextureStageState( 1, D3DTSS_COLOROP, 1 );
87 pDevice->SetTextureStageState( 1, D3DTSS_ALPHAOP, 1 );
88 pDevice->SetVertexShader( D3DFVF_TEX1 | D3DFVF_DIFFUSE | D3DFVF_XYZ );
89
90 static TMatrix44 s_Identity = TMatrix44::IDENTITY;
91
92 pDevice->SetTransform( D3DTS_PROJECTION, (D3DMATRIX*)&pRenderContext->GetProjectionMatrix() );
93 pDevice->SetTransform( D3DTS_VIEW, s_Identity );
94 pDevice->SetPixelShader( 0 );
95
96 pDevice->SetRenderState( D3DRS_ALPHATESTENABLE, FALSE );
97 pDevice->SetRenderState( D3DRS_ALPHABLENDENABLE, TRUE );
98 pDevice->SetRenderState( D3DRS_ALPHATESTENABLE, TRUE );
99 pDevice->SetRenderState( D3DRS_ALPHAREF, 1 );
100 pDevice->SetRenderState( D3DRS_ALPHAFUNC, 5 );
101 pDevice->SetRenderState( D3DRS_SPECULARENABLE, FALSE );
102 pDevice->SetRenderState( D3DRS_LIGHTING, 0 );
103 pDevice->SetRenderState( D3DRS_FOGENABLE, FALSE );
104}

◆ TDECLARE_CLASS()

ASysShaderHAL::TDECLARE_CLASS ( ASysShaderHAL ,
ASysShader  )

◆ TryInvalidate()

TBOOL ASysShaderHAL::TryInvalidate ( )
overridevirtual

Definition at line 146 of file ASysShader_DX8.cpp.

147{
148 Invalidate();
149 return TTRUE;
150}
TTRUE
#define TTRUE
Definition Typedefs.h:25
ASysShaderHAL::Invalidate
virtual void Invalidate() override
Definition ASysShader_DX8.cpp:138

◆ TryValidate()

TBOOL ASysShaderHAL::TryValidate ( )
overridevirtual

Definition at line 152 of file ASysShader_DX8.cpp.

153{
154 Validate();
155 return TTRUE;
156}

◆ Validate()

TBOOL ASysShaderHAL::Validate ( )
overridevirtual

Definition at line 128 of file ASysShader_DX8.cpp.

129{
130 if ( !IsValidated() )
131 {
132 return ASysShader::Validate();
133 }
134
135 return TTRUE;
136}

Member Data Documentation

◆ ms_bRenderEnabled

TBOOL ASysShaderHAL::ms_bRenderEnabled = true
inlinestatic

Definition at line 33 of file ASysShader_DX8.h.

◆ NUM_ORDER_TABLES

TUINT ASysShaderHAL::NUM_ORDER_TABLES = 4
staticconstexpr

Definition at line 11 of file ASysShader_DX8.h.

The documentation for this class was generated from the following files:
